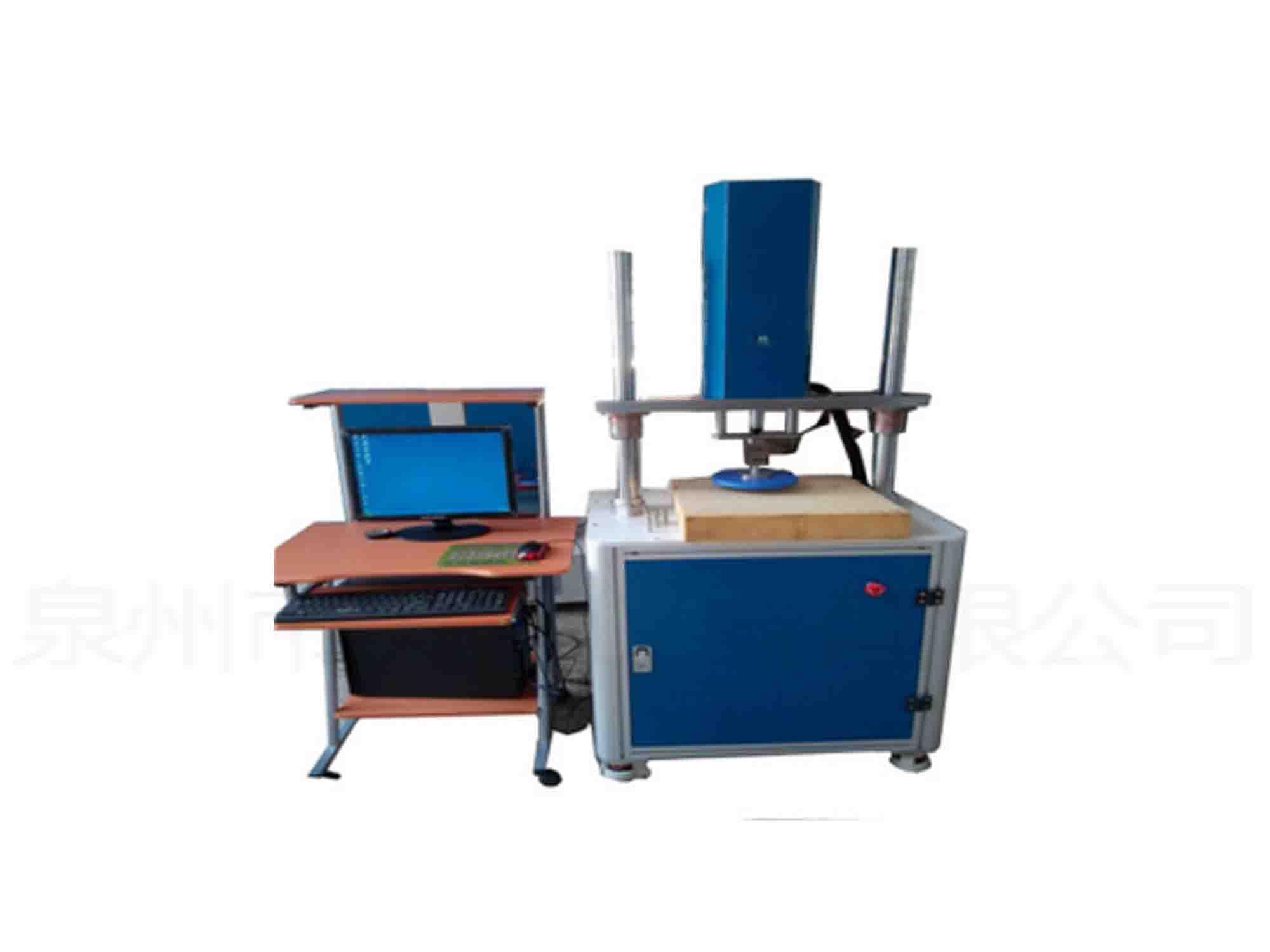

MB0525 foam stress tester

Video
Gallery
360°Show
×
×
131582240700488814
131582240700488814
×
20171220135423_4959
Applicable scope
Test principles and standards
Instrument characteristics
Configuration list

1, Detection of spongy indentation hardness testing machine for compression testing machine, sponge foam indentation hardness testing machine, metal and non metal, polymer materials such as tensile, compression, bending, low cycle fatigue and other projects, can automatically calculate the maximum test force, breaking force, yield strength, tensile strength. The compressive strength, bending strength, elastic modulus, elongation.
2, The parameters such as elongation stress, stress elongation and so on.
3, Automatic zero: after the computer receives the test start, the system automatically zeroed.
4, Automatic return: after the specimen is broken, it automatically returns to the initial position.
5, Automatic shift: according to the size of the load, you can switch different gears to ensure the accuracy of the measurement.
6, Change speed: This machine can change test speed arbitrarily according to different sample.
7, The indication of the value: the system can realize the accurate calibration of the force value.
8, Control methods: Test methods, such as test force, test speed, displacement and strain, can be selected according to the needs of the test.
9, One machine multi-purpose: equipped with different specifications of the sensor, can achieve a multi - use machine.
10, Curve traversal: after the experiment is completed, the mouse can be used to find out the force and deformation data of the test curve point by point and analyze it.
11, Display: dynamic display of data and curve test process.
12, Results: the results of the test can be accessed, and the data curve is analyzed.
13, Limit position: with program control and mechanical limit.
14, Overload: stop automatically when the load exceeds the rated value.

GB/T 10807-89, ISO 2439-1980, according to customer product requirements, according to the standards of GB, ISO, ASTM, JIS, EN and other standards
